VNCI 6154A Diagnostic Interface for VW Audi Skoda Seat Support CAN FD DoIP

The VNCI 6154A DoIP Diagnostic Interface is a professional VAG diagnostic tool designed for Volkswagen Group vehicles, delivering full OEM-level diagnostics, coding, and programming capabilities. Fully compatible with original ODIS software drivers, this device ensures seamless operation without the need for third-party tools or driver modifications.

VNCI 6154A DoIP Key Features for VAG Diagnostic Interface

The VNCI 6154A DoIP features a compact, lightweight, and durable design, making it suitable for both workshop and mobile diagnostics.

• Fully compatible with original ODIS drivers (no modification required)
• Supports DoIP and CAN FD protocols
• Plug and play – no third-party software needed
• Free license support until 2030
• Works with VW, Audi, Skoda, Seat, Bentley, Lamborghini, MAN
• Supports USB, WiFi (AP mode), and LAN connection
• Supports both online and offline programming
• Stable firmware with continuous operation up to 8 hours
• Multi-language support (22+ languages)

VNCI 6154A DoIP Functions – Full VAG Diagnostics & Programming

• Full vehicle diagnostics across all modules
• Read and clear fault codes
• ECU coding and programming
• Online and offline programming
• Flash hidden features
• Service and engineering functions
• Immobilizer and anti-theft functions
• Data stream monitoring and analysis

Supported protocols:

• DoIP
• CAN FD
• UDS
• KWP2000
• CAN Bus
• K-Line

VNCI 6154A DoIP Supported Vehicles – Volkswagen Group Coverage

• Volkswagen (1995 – 2023)
• Audi (1995 – 2023)
• Skoda (1995 – 2023)
• Seat (1995 – 2023)
• Bentley (1995 – 2023)
• Lamborghini (1995 – 2023)
• MAN (1995 – 2023)

Supports both legacy and modern DoIP vehicles (especially 2018+ models).

VNCI 6154A DoIP Compatible Software – ODIS Service & Engineering

• ODIS Service (V9, V10, V11, V23.0.1+)
• ODIS Engineering (V14, V15, V16, V17.01+)

Note:

• Software is NOT included
• Works with original drivers without modification
• Optional activation may be required

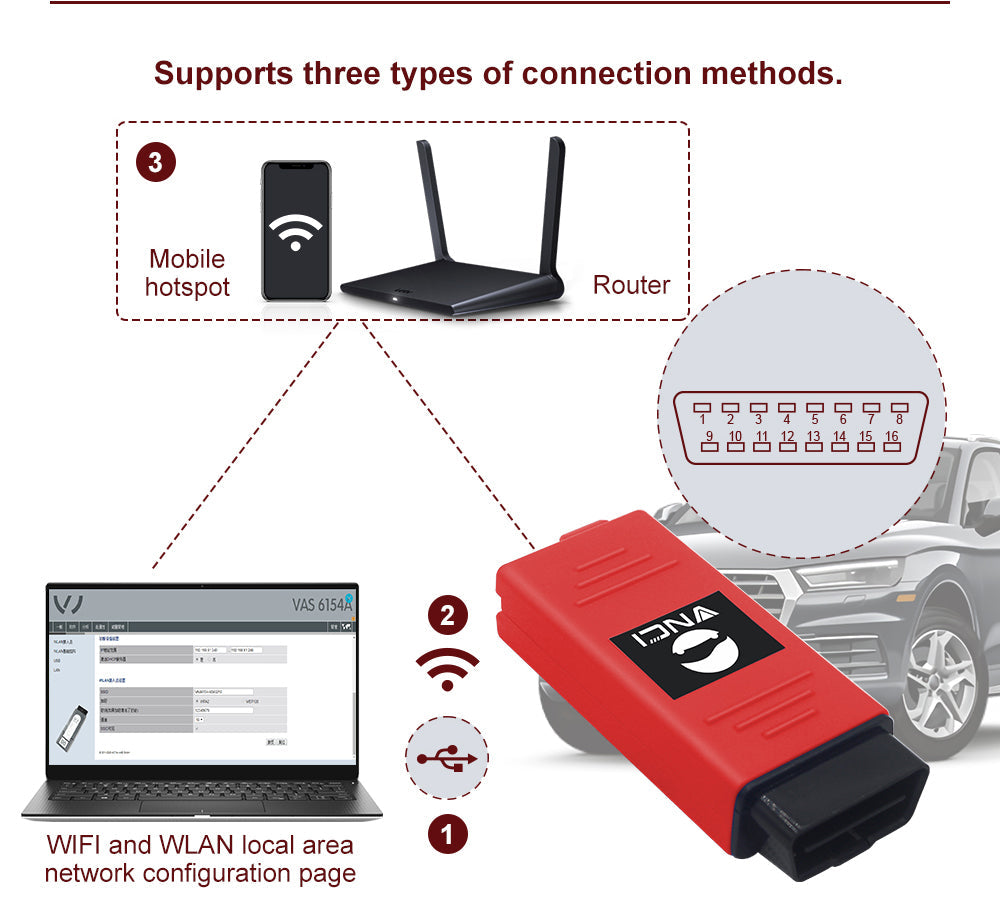

VNCI 6154A DoIP Connectivity – USB, WiFi & LAN Modes

• USB connection
• WiFi AP (direct connection)
• WLAN (same network connection)

Switch easily between modes using built-in button

VNCI 6154A DoIP Technical Highlights for VAG Workshop

• 100% OEM-level diagnostic capability
• Full support DoIP & CAN FD
• No driver manager required
• Stable firmware and fast communication
• Supports online diagnostics with account

VNCI 6154A DoIP Hardware Specifications

• Dimensions: 110 × 48 × 28 mm
• Weight: 85.5 g
• Voltage: 8V – 18V DC
• Power supply: OBD2 (12V) or USB (5V)
• Operating temperature: -20°C to 85°C
• Wireless frequency: 2.4 GHz

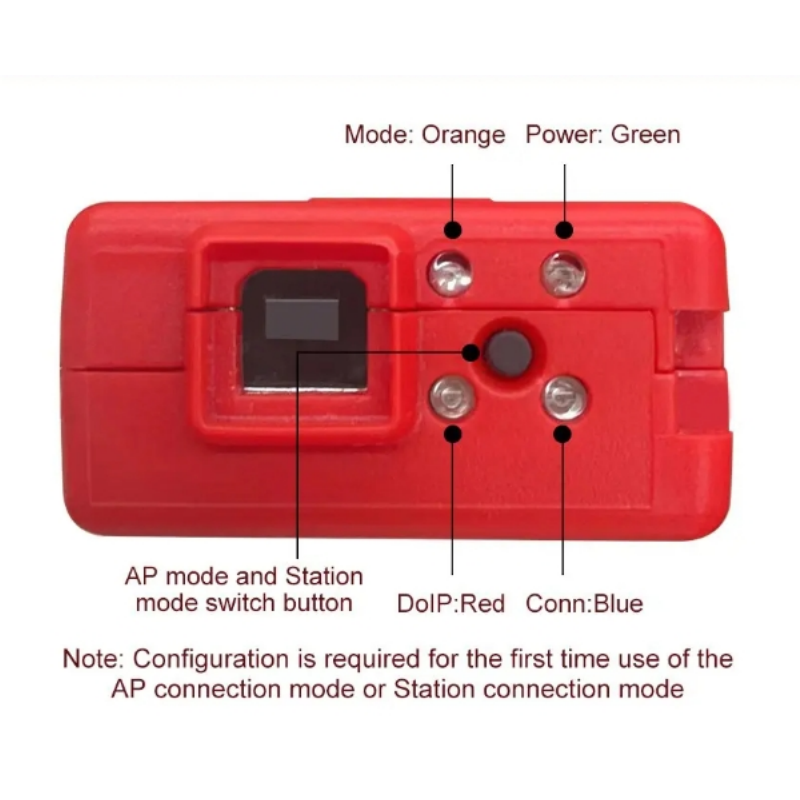

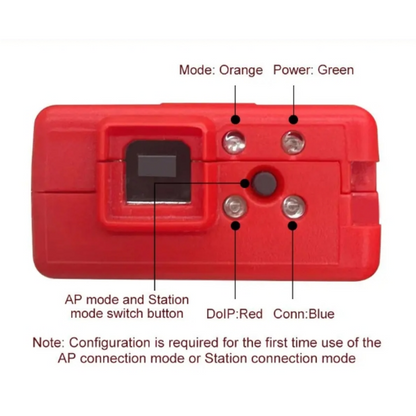

VNCI 6154A DoIP LED Indicators & Status

• Orange: Mode
• Green: Power
• Red: DoIP communication
• Blue: Connection status

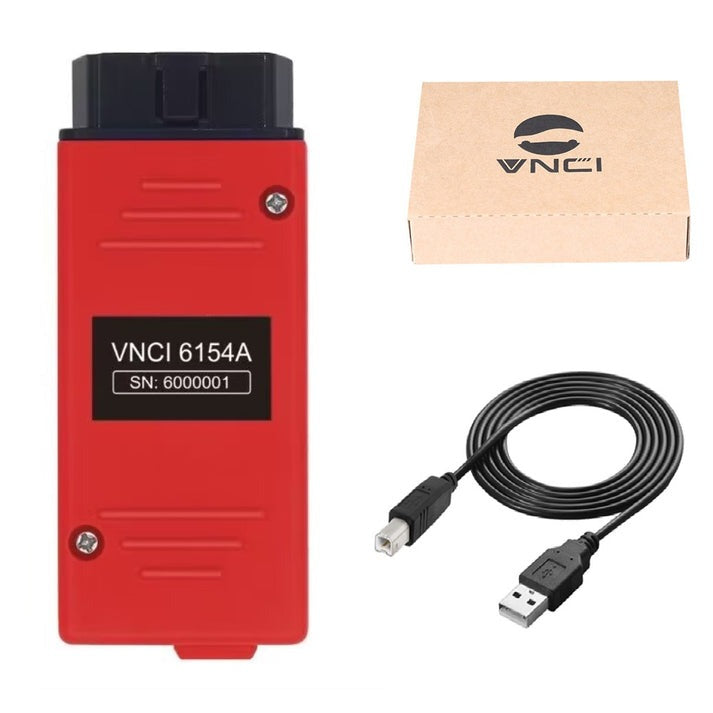

VNCI 6154A DoIP Package Includes

• VNCI 6154A DoIP main unit ×1
• USB cable ×1
• Packaging box ×1

Why Choose VNCI 6154A DoIP VAG Diagnostic Tool?

The VNCI 6154A DoIP is a cost-effective alternative to the original VAS 6154A, offering the same diagnostic performance at a significantly lower cost.

Ideal for:

• VAG workshops
• Independent technicians
• Coding specialists
• Advanced diagnostics and retrofit work

VNCI 6154A DoIP Warranty & Technical Support:

• Hardware warranty included
• Technical support available
• Remote setup assistance (if required)
• Worldwide shipping

The VNCI 6154A DoIP Diagnostic Tool is a powerful and reliable solution for Volkswagen Group diagnostics, coding, and programming. Contact AutoExplain via WhatsApp: +1 (936) 289 6695
