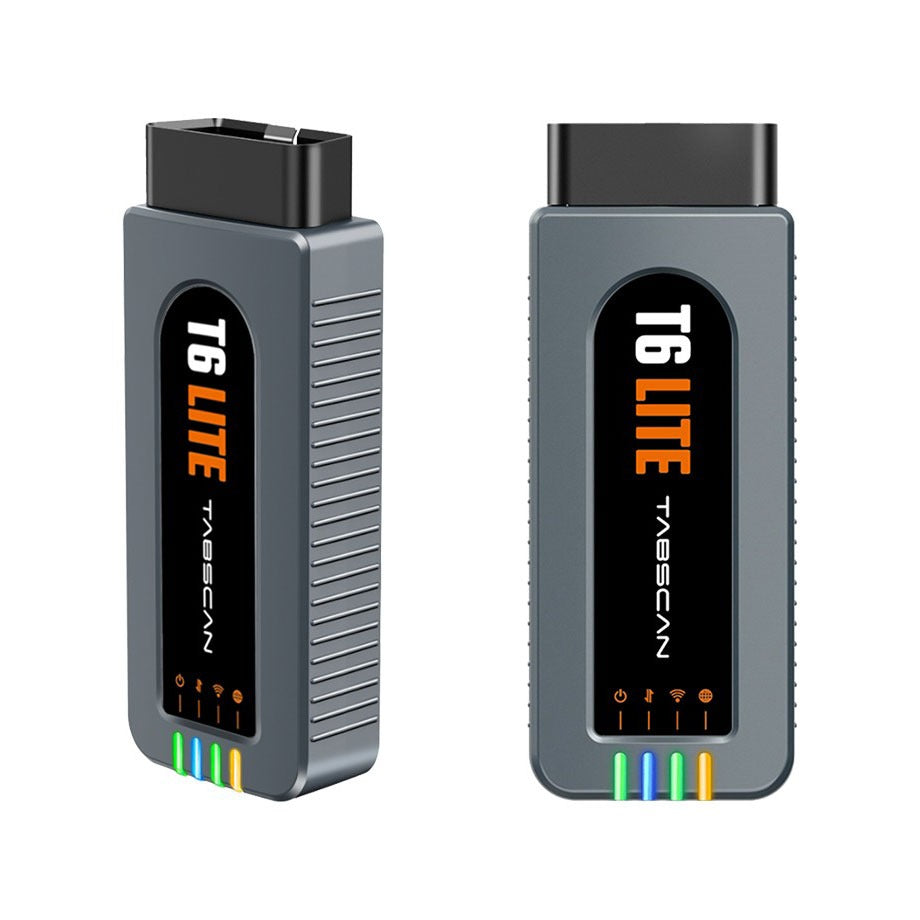

Tabscan T6 Lite Diagnosis Tool

The Tabscan T6 Lite is a compact yet powerful multi-brand diagnostic tool, designed for professional workshops, mobile technicians, and automotive enthusiasts who need reliable coverage without the high cost of advanced OEM devices. Supporting leading brands like Volkswagen, Audi, Skoda, BMW, Mercedes-Benz, Toyota, Ford, and more, the T6 Lite offers full-system diagnostics, coding, service resets, and basic programming functions.

With support for modern communication protocols such as CAN FD, DoIP, J2534, and PDU, this device ensures compatibility with both current and future vehicle models. Its balance of affordability and strong functionality makes it a go-to solution for garages worldwide.

Key Features

1. Entry-Level, OEM-Compatible
Affordable yet professional, the T6 Lite supports a wide range of OEM diagnostic software with limited restrictions on certain brands.

2. Modern Communication Protocols

- CAN & CAN FD

- DoIP (Diagnostics over IP)

- J2534 Passthru

- PDU & KWP2000

- SAE J1850 & ISO9141

2. OEM Software Coverage (with Limitations)

- Mercedes-Benz: Supports basic diagnostics, adaptations, and variant coding. Does not support SCN coding or ECU flashing.

- GM (Chevrolet, GMC, Cadillac, Buick): Standard diagnostics supported, but SPS programming and newer CAN FD modules may have limited communication.

- Custom Branding Support
Allows logo customization—ideal for workshops or service companies wanting to personalize their tools.

- Connectivity Options
USB Type-C, Wi-Fi (2.4/5GHz), and Bluetooth 5.0 ensure fast, flexible use with laptops, tablets, or PCs.

- Competitive Pricing
Positioned as an entry-level alternative to the Tabscan T6 Elite, offering strong functions at a fraction of the cost.

Supported Brands

The Tabscan T6 Lite covers a wide range of global manufacturers, making it an excellent choice for multi-brand workshops.

✅ Fully Supported (General Diagnostics & Service Functions)

- Volkswagen Group (VW, Audi, Skoda, SEAT)

- Toyota, Lexus

- Hyundai, Kia

- Ford, Mazda

- BMW (F/G series with ENET/ICOM emulation)

- Nissan, Honda, Acura

- Fiat, Chrysler, Jeep, Dodge

- Peugeot, Citroën (PSA)

- Renault, Dacia

- Volvo, Suzuki, Mitsubishi

⚠️ Partially Supported (Programming Limitations)

- Mercedes-Benz: Limited to basic coding, no SCN or ECU flashing

- GM Vehicles: SPS programming limited, newer CAN FD models may have issues

Technical Specifications

- Processor: Industrial-grade, high-speed

- Memory: 512MB RAM / 4GB Flash

- Power Supply: DC 9–36V (12V & 24V systems supported)

- Dimensions: 130 × 90 × 30 mm

- Weight: ~450g

- Housing: Rugged ABS with rubber edge protection

- Operating Temp: -20°C to +70°C

- Protocols Supported: CAN, CAN FD, DoIP, J2534, PDU, ISO9141, J1850, KWP2000

- OS Compatibility: Windows 10 / 11 (64-bit recommended)

Why Choose AutoExplain’s Tabscan T6 Lite?

- Trusted by professional garages worldwide

- Affordable pricing with modern protocol support

- Multi-brand diagnostic coverage

- Flexible license options, with upgrade paths to dealer-level access

- Remote installation & technical guidance from AutoExplain experts

The Tabscan T6 Lite delivers an excellent balance between price and performance. While it does not offer full OEM-level programming like the T6 Elite, it excels in general diagnostics, coding, and service functions for most major brands.

👉 If you’re a small garage, mobile technician, or repair shop looking for a cost-effective, future-ready diagnostic tool, the Tabscan T6 Lite from AutoExplain is your ideal choice.
